CML2 Series

DC link power electronics capacitors

, CML2 Series, Meco Capacitors

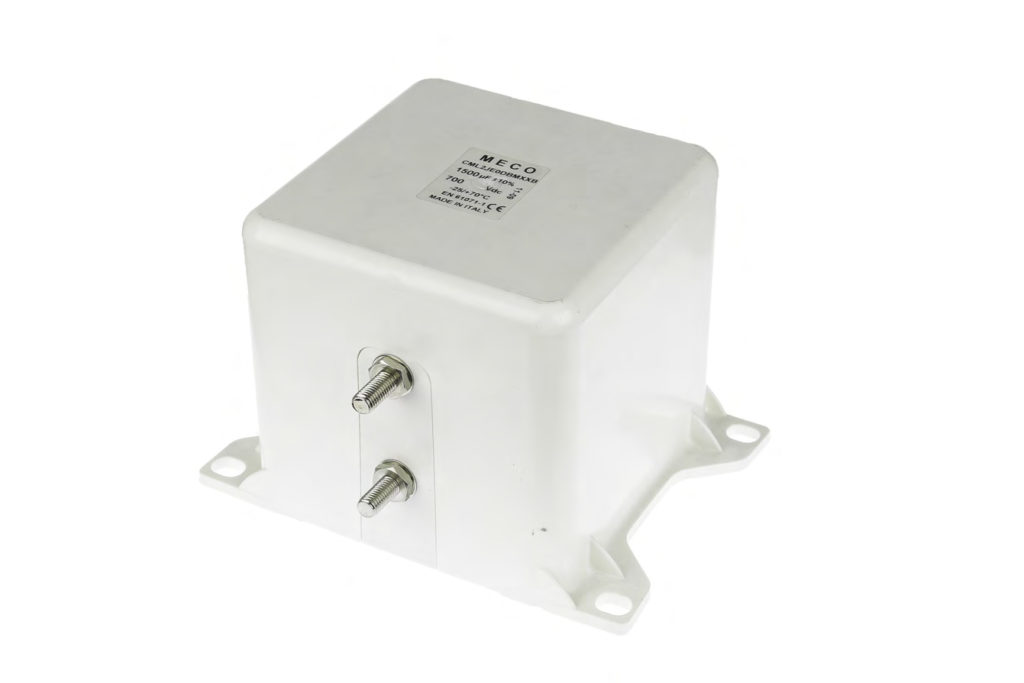

Low inductance capacitors in plastic box for DC link applications, inverters, AC/DC motor drivers and energy storage.


Caratteristiche tecniche
Technical details
Tensione nominale DC (UNDC)
Rated DC voltage (UNDC)
700, 900, 1100, 1300, 1500, 1800, 2000, 2200, 2700, 3000, 3500, 4000, 5000
Tensione di ondulazione (Ur)
Ripple voltage (Ur)
≤0,25UNDC
Tolleranza capacità
Capacitance tolerance
±10%
Dispositivo di sicurezza
Safety device
NO
Categoria climatica
Climatic category
40/70/21
Temperatura massima d’esercizio -Ѳmax
Maximum operating temperature -Ѳmax
70°C
Temperatura minima d’esercizio -Ѳmin
Minimum operating temperature -Ѳmin
-40°C
Temperatura massima punto più caldo -Ѳhs
Maximum hotspot temperature -Ѳhs
85°C
Temperatura di stoccaggio
Storage temperature
-40 +85°C
Tensione di prova

Test voltage
tra i terminali: 1,5UNDC/30”
verso massa: 5kV/3”
between terminals: 1,5UNDC/30”
between terminals and case: 5kV/3”
Terminali
Terminals
Viti M10
M10 screws
Corrente massima terminali
Maximum terminal current
160A
Coppia massima serraggio terminali
Fixing screws maximum torque
10Nm
Materiale contenitore
Case material
Plastica UL94-V0
UL94-V0 plastic
Norma di riferimento Reference standard
IEC 61071
Aspettativa di vita
Life expectancy
100000 h
Umidità relativa
Relative humidity
<95%
Altitudine
Altitude
≤2000 mslm masl

WARNINGS

Improper use of the capacitor such as, for example, applications that involve exceeding the capacities and/or characteristics reported on a given capacitor, can cause an irreversible breakdown and/or breakage that can occur with the explosion of capacitor or with a deterioration such as to manifest loss of capacity, increase of power factor and permanent circuit interruption. Meco Capacitors declines any responsibility for damage to the capacitors, to persons or things deriving from improper or incorrect use of their products.
RoHS Directive
MECO Capacitors products are in line with the European directive 2002/95/EC already known as RoHS directive.
