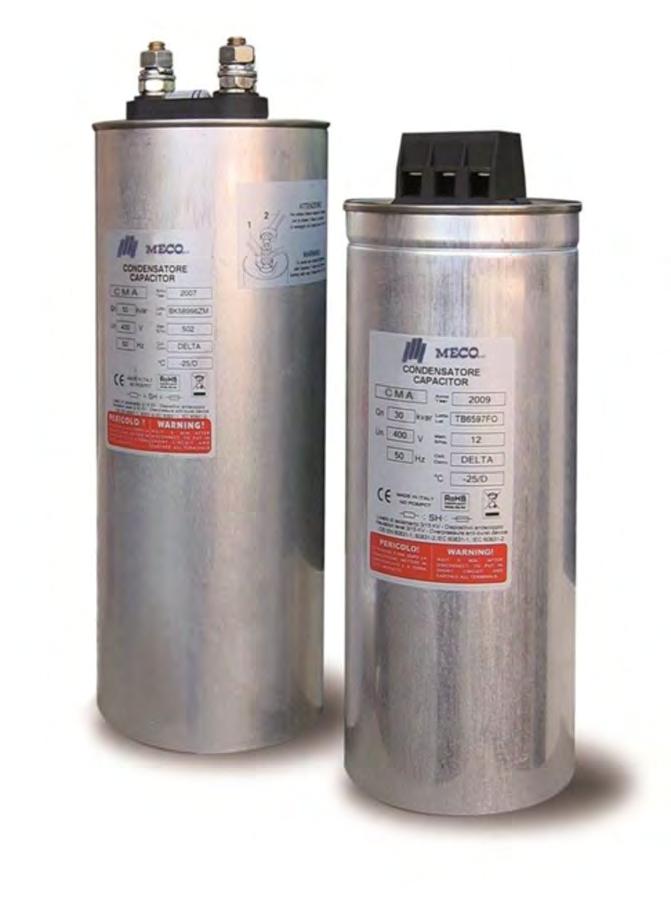

SERIE CMA 4  Condensatori trifase cilindrico

CMA 4 SERIES

Triphase capacitors

Complete range of three-phase capacitors with cylindrical-shaped casing. Particularly suitable for fixed power factor correction, whenever there are problems of dimensions.
All capacitors are equipe with external discharge resistor, over-current fuses and overpressure safety device that, in the event of the element failing, disconnects it fromthe power circuit ensuring the maximum safety in every application.


Caratteristiche tecniche
Technical details

Tolleranza
Tolerance
-5 % /+10 %
Tensione nominale
Rated Voltage
(Un) 230 – 400 – 415 – 440 – 480 – 525 - 690 V
Frequenza nominale
Rated Frequency
50 Hz (60 Hz a richiesta
On demand)
Temperatura d’esercizio
Working temperature
Classe D -25°C / +55°C - Classe C -25°C / +50°C
Perdite dielettriche
Dielectric losses
≤0,2W/kVar
Perdita totale al terminale
Total losses at the terminals
≤0,4W/kVar
Corrente massima
Max current
1,5In
Livello di isolamento
Insulation level
3/15kV Ue = 660Vac
Massimo valore di cresta del transitorio di corrente
Maximum peak value of the current transient
≤200In
Prova di Tensione tra i terminali
Voltage test between the terminals
2,15 Un for 2”
Prova di Tensione tra i terminali e la custodia
Voltage test between the terminals and case
3,6kV for 10”
Resistenza di scarica interna
External discharge resistor
Riduzione a 75V in 3 minuti
Reduction to 75V within 3 minutes
Terninali
Terminals
Connettori a morsetti; viti M10 per Ø120 mm
Clamp connectors; M10 screws for Ø120 mm
Servizio
Service
Continuo
Continuous
Installazione
Installation
Interno
Internal
Raffreddamento
Cooling
Aria naturale
Natural air
Umidità massima
Max permissibile humidity
80%
Altitudine
Altitude
≤2000 ( m a.s.l.)
Grado di protezione
Degree of protection
IP20 - IP00 per Ø120 mm
IP20 - IP00 for Ø120 mm
Aspettativa di vita
Expected life
>130.000 h (classe D) - >150.000 h (classe C)
Fissaggio
Fixing
Codolo filettato M12
M12 stud
Norme di riferimento
Reference Standards
CEI EN 60831-1/2,
IEC 60831- 1/2
Numero di inserzioni
Number of switching operations
Max 5000/anno secondo IEC 60831-1/2
Max 5000 per year according to IEC 60831-1/2

WARNINGS

Improper use of the capacitor such as, for example, applications that involve exceeding the capacities and/or characteristics reported on a given capacitor, it can cause an irreversible breakdown and/or breakage that can occur with the explosion of capacitor or with a deterioration such as to manifest loss of capacity, increase of power factor and permanent circuit interruption. MECO S.r.l. declines any responsibility for damage to the condenser, to persons or things deriving from improper or incorrect use of their products.
RoHS Directive MECO condensers are in line with the European directive 2002/95 / EC already known as RoHS directive.
